Product Details

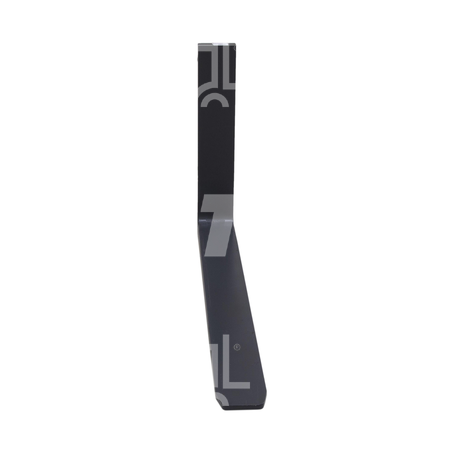

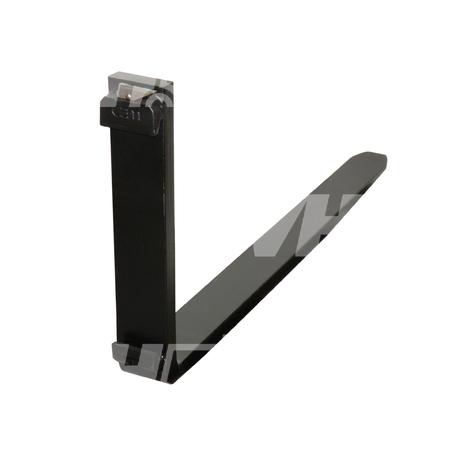

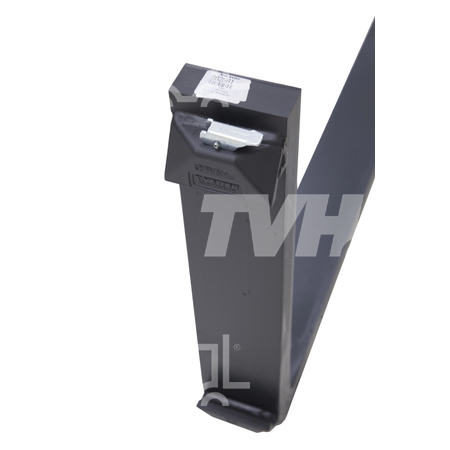

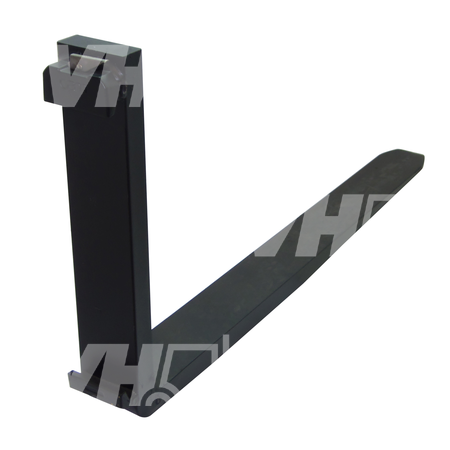

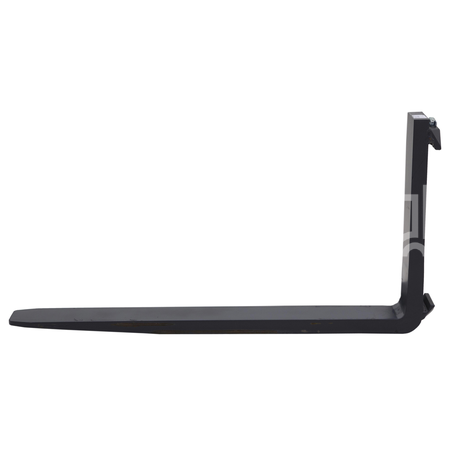

FORK

Name: FORK
Brand: MHP Parts
SKU: LSF-0013272
Price: 156.65 GBP
Availability: InStock

Product code: LSF-0013272

Order FORK online with live pricing, stock visibility, and fast UK and Ireland dispatch.

Fitment

Suitable for

CLASS 3A

Availability

IN STOCK

Your price

£156.65

ex VAT

Weight

71 kg

Quantity

Add to basket to review delivery, VAT and secure card checkout. Need help first? Ask us about this part.

Need a little more info?

Talk to us about fitment, compatibility or alternative parts.

e: orders@mhp-parts.com | t: 004428 3885 2503

Specifications

New or remanufactured	New
Type of fork	FEM/ISO hook mount fork
Mounting class (ISO 2328)	FEM 3
Type of mounting class (ISO 2328)	A
Usable length of the fork	47 in
Usable length of the fork	1200 mm
Width of the fork	125 mm
Width of the fork	5.0 in
Thickness of the fork	1.75 in
Thickness of the fork	45 mm
Capacity per pair (on load centre)	3500 kg
Capacity per pair (on load centre)	7700 lb
Load centre	500 mm
Load centre	19.7 in
Fork taper	Standard
Mounting – Clip spacing/Carriage height	508 mm
Mounting – Clip spacing/Carriage height	20 in
Mounting - Distance between inside bottom hook and bottom of the fork (ground clearance)	76 mm
Mounting - Distance between inside bottom hook and bottom of the fork (ground clearance)	3 in
Mounting – Smallest distance between two hooks (tip to tip)	477 mm
Mounting – Smallest distance between two hooks (tip to tip)	18.75 in
Total back height from bottom to top	655 mm
Total back height from bottom to top	26 in

Additional Information

Product information

Unit / pack

piece

Dimensions

130 mm L x 670 mm W x 1280 mm H

Minimum order

2 ST

Useful notes

This is a product with exceptional dimensions. It is possible that the chosen carrier will be adjusted and transport cost and delivery time can/may change.
Capacity: 4000kg per pair at 500mm load centre
Measures:125X45X1200mm
Brand supplied: CAM
