Product Details

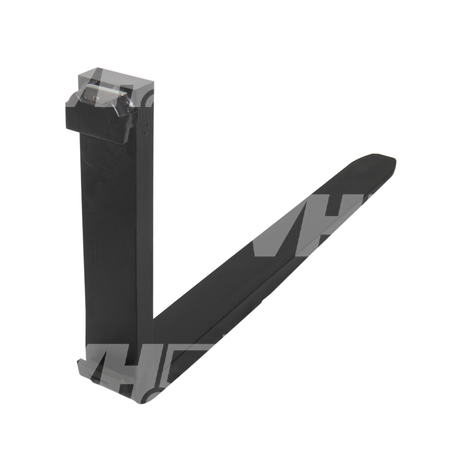

FORK

Name: CAM FORK
Brand: CAM
SKU: LSF-0013271
Price: 105.17 GBP
Availability: InStock

Product code: LSF-0013271

Order FORK online with live pricing, stock visibility, and fast UK and Ireland dispatch.

Designed for: CAM

Fitment

Suitable for

CLASS 2A

Availability

IN STOCK

Your price

£105.17

ex VAT

Weight

40 kg

Quantity

Add to basket to review delivery, VAT and secure card checkout. Need help first? Ask us about this part.

Need a little more info?

Talk to us about fitment, compatibility or alternative parts.

e: orders@mhp-parts.com | t: 004428 3885 2503

Specifications

New or remanufactured	New
Type of fork	FEM/ISO hook mount fork
Mounting class (ISO 2328)	FEM 2
Type of mounting class (ISO 2328)	A
Usable length of the fork	39 in
Usable length of the fork	1000 mm
Width of the fork	100 mm
Width of the fork	4.0 in
Thickness of the fork	1.5 in
Thickness of the fork	40 mm
Capacity per pair (on load centre)	2500 kg
Capacity per pair (on load centre)	5500 lb
Load centre	500 mm
Load centre	19.7 in
Mounting – Clip spacing/Carriage height	407 mm
Mounting – Clip spacing/Carriage height	16 in
Mounting - Distance between inside bottom hook and bottom of the fork (ground clearance)	76 mm
Mounting - Distance between inside bottom hook and bottom of the fork (ground clearance)	3 in
Mounting – Smallest distance between two hooks (tip to tip)	382 mm
Mounting – Smallest distance between two hooks (tip to tip)	15.0 in
Total back height from bottom to top	538 mm
Total back height from bottom to top	21 in

Additional Information

Product information

Unit / pack

piece

Dimensions

100 mm L x 640 mm W x 1080 mm H

Minimum order

2 ST

Useful notes

This is a product with exceptional dimensions. It is possible that the chosen carrier will be adjusted and transport cost and delivery time can/may change.
Capacity: 2500kg per pair at 500mm load centre
Measures:100x40x1000mm
